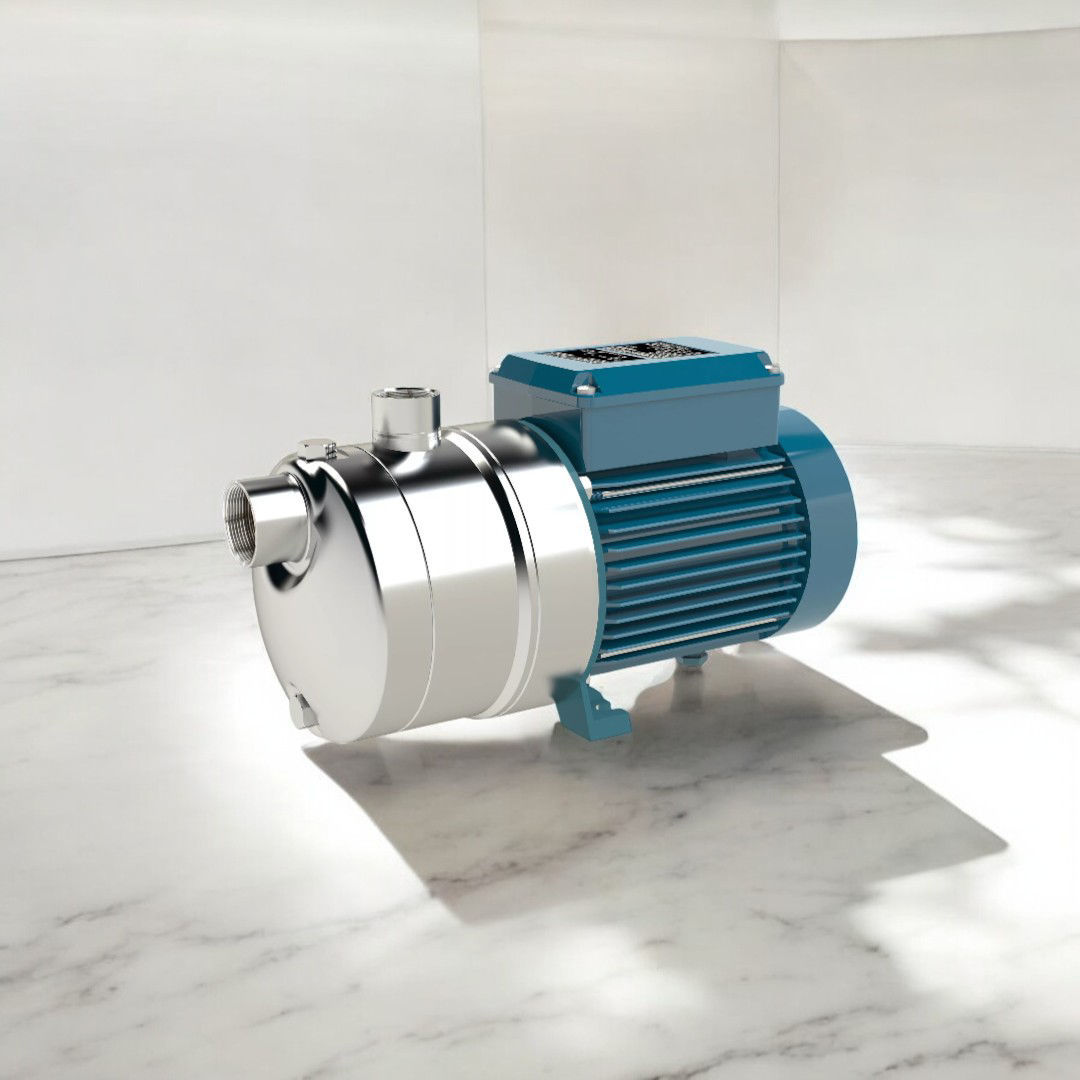

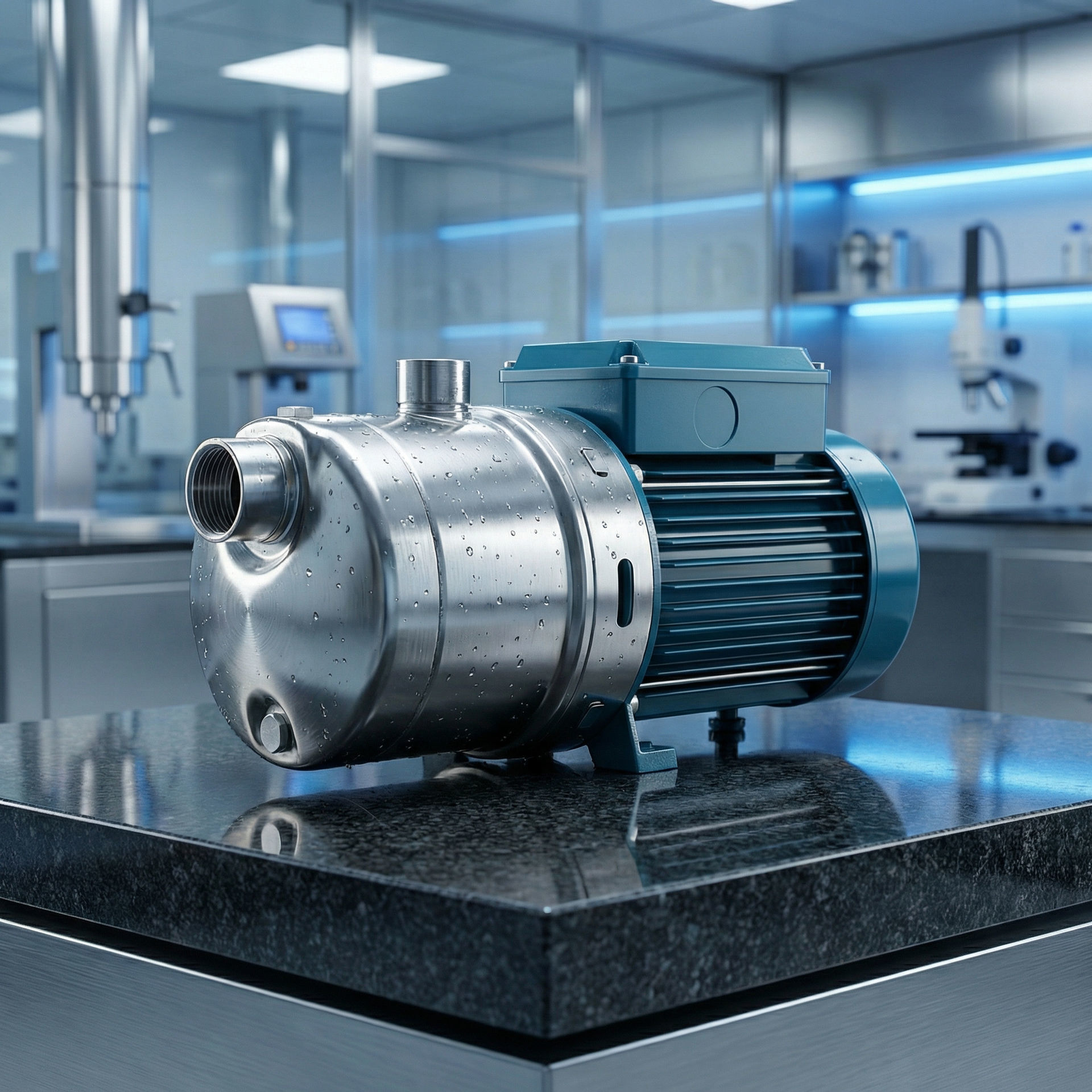

Calpeda MXHM 403 Horizontal Multi Stage Pump
Previous productCalpeda MXHM 405 Horizontal...
Next productCalpeda MXHM 202E Horizonta...

Be the first to review this product

KWD 120.000

Manufacturer: Calpeda

The Calpeda MXHM 403 is a Single-Phase Horizontal Multi-Stage Close-Coupled Pump

It Features a Casing, an Impeller, and a Shaft That is All Made from Heavy Duty Stainless-Steel

It is Mainly Used for Water Supply, Domestic Use, Civil and Industrial Applications, Garden and Irrigation and Can Withstand Temperatures Ranging from -15 °C to 110 °C

The Calpeda MXHM 403 has a Power Output of 0.75 Horsepower a Maximum Head of 33 Meters and a Maximum Capacity of 133 Liters per Minute

Free shipping

Availability: In stock

Specifications
Overview

Products specifications

Attribute name	Attribute value
Type	Horizontal Multi-Stage Centrifugal Pump
Motor Output	0.75 Horsepower
Phase	Single Phase
Material	Gray Cast Iron Casing, Gray Cast with Tungesten Carbide Alloy Impeller, Stainless-Steel Shaft
Inlet/Outlet	1.25"x1"
Operating Fluid Temperature	-15 °C to +120 °C
Maximum Head	33 m
Maximum Capacity	133 l/min
Made In	Italy

The Calpeda MXHM 403 is a Single-Phase Horizontal Multi-Stage Close-Coupled Pump

It Features a Casing, an Impeller, and a Shaft That is All Made from Heavy Duty Stainless-Steel

It is Mainly Used for Water Supply, Domestic Use, Civil and Industrial Applications, Garden and Irrigation and Can Withstand Temperatures Ranging from -15 °C to 110 °C

The Calpeda MXHM 403 has a Power Output of 0.75 Horsepower a Maximum Head of 33 Meters and a Maximum Capacity of 133 Liters per Minute

The Calpeda MXHM 403 is a Single-Phase Horizontal Multi-Stage Close-Coupled Pump

It Features a Casing, an Impeller, and a Shaft That is All Made from Heavy Duty Stainless-Steel

It is Mainly Used for Water Supply, Domestic Use, Civil and Industrial Applications, Garden and Irrigation and Can Withstand Temperatures Ranging from -15 °C to 110 °C

The Calpeda MXHM 403 has a Power Output of 0.75 Horsepower a Maximum Head of 33 Meters and a Maximum Capacity of 133 Liters per Minute

Products specifications

Attribute name	Attribute value
Type	Horizontal Multi-Stage Centrifugal Pump
Motor Output	0.75 Horsepower
Phase	Single Phase
Material	Gray Cast Iron Casing, Gray Cast with Tungesten Carbide Alloy Impeller, Stainless-Steel Shaft
Inlet/Outlet	1.25"x1"
Operating Fluid Temperature	-15 °C to +120 °C
Maximum Head	33 m
Maximum Capacity	133 l/min
Made In	Italy
