Manufacturer: Calpeda

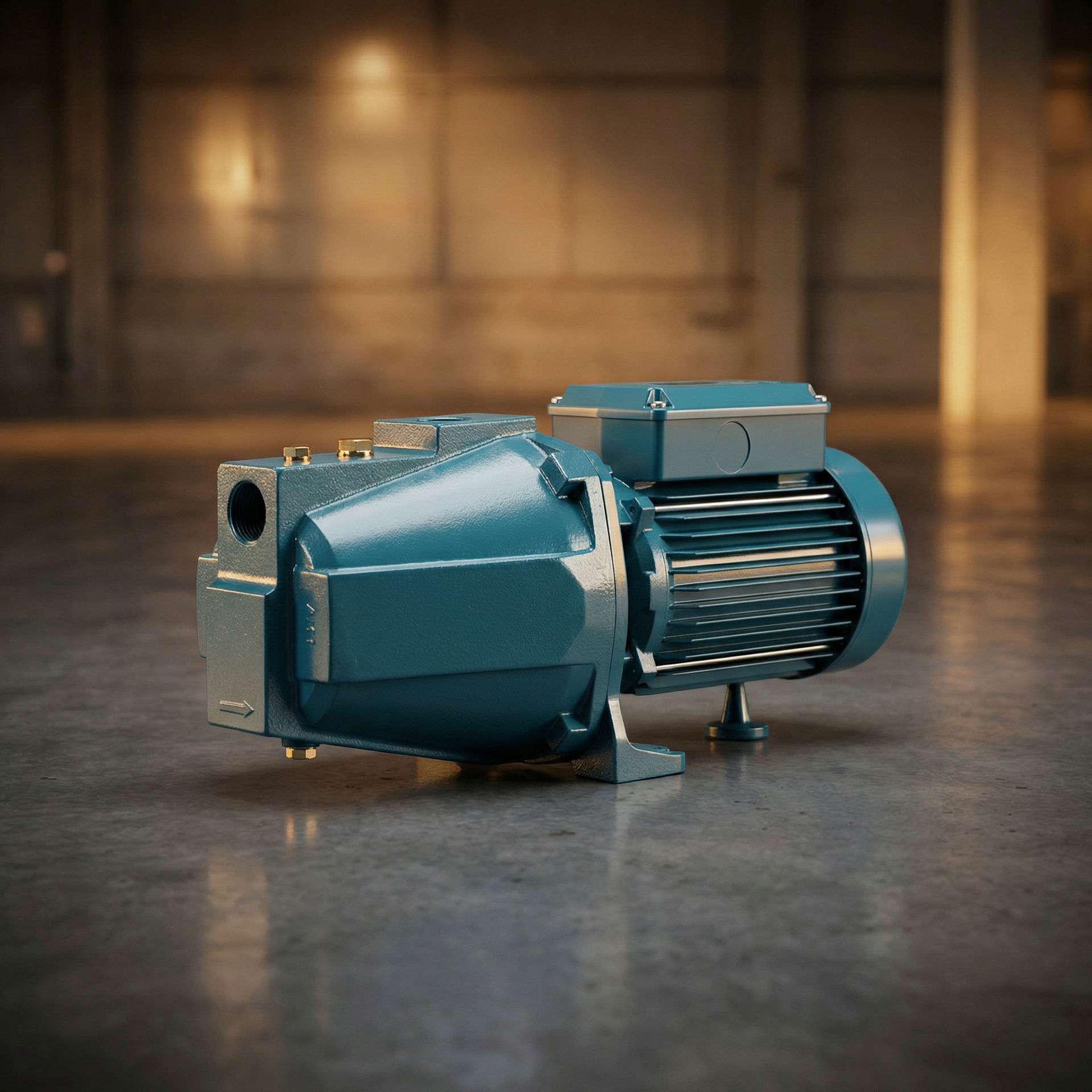

The Calpeda NGM 5/16E is a Single-Phase Close-Coupled Self-Priming Pump with Built-In Ejector

It Features a Casing and a Diffuser Plate that are Made from Heavy Duty Cast Iron a Brass Impeller and Chrome-Nickel Steel Shaft

It is Mainly Used for Drawing Water from a Well, Pressure Boosting Systems, Garden and Jet Washing and Can Withstand Temperatures up to 40 °C

The NGM 5/16E has a Power Output of 1.5 Horsepower a Maximum Head of 59 Meters and a Maximum Capacity of 75 Liters per Minute

Free shipping

Availability: In stock

Products specifications

Attribute name	Attribute value
Type	Self-Priming Pump
Motor Output	1.5 Horsepower
Phase	Single Phase
Material	Cast Iron Casing, Brass Impeller, Chrome-Steel Shaft
Inlet/Outlet	1.5"x1"
Operating Fluid Temperature	Up to 40 °C
Maximum Head	59 m
Maximum Capacity	75 l/min
Made In	Italy

The Calpeda NGM 5/16E is a Single-Phase Close-Coupled Self-Priming Pump with Built-In Ejector

It Features a Casing and a Diffuser Plate that are Made from Heavy Duty Cast Iron a Brass Impeller and Chrome-Nickel Steel Shaft

It is Mainly Used for Drawing Water from a Well, Pressure Boosting Systems, Garden and Jet Washing and Can Withstand Temperatures up to 40 °C

The NGM 5/16E has a Power Output of 1.5 Horsepower a Maximum Head of 59 Meters and a Maximum Capacity of 75 Liters per Minute

Six Months Warranty on Any Manufacturing Defects on All Parts.

The warranty will be considered void due to the following reasons:

• Malfunctions And Damages Resulting from Improper Installlation, Improper Operation and Improper Maintenance

• The Use of Non-Genuine Parts

The Calpeda NGM 5/16E is a Single-Phase Close-Coupled Self-Priming Pump with Built-In Ejector

It Features a Casing and a Diffuser Plate that are Made from Heavy Duty Cast Iron a Brass Impeller and Chrome-Nickel Steel Shaft

It is Mainly Used for Drawing Water from a Well, Pressure Boosting Systems, Garden and Jet Washing and Can Withstand Temperatures up to 40 °C

The NGM 5/16E has a Power Output of 1.5 Horsepower a Maximum Head of 59 Meters and a Maximum Capacity of 75 Liters per Minute

Products specifications

Attribute name	Attribute value
Type	Self-Priming Pump
Motor Output	1.5 Horsepower
Phase	Single Phase
Material	Cast Iron Casing, Brass Impeller, Chrome-Steel Shaft
Inlet/Outlet	1.5"x1"
Operating Fluid Temperature	Up to 40 °C
Maximum Head	59 m
Maximum Capacity	75 l/min
Made In	Italy
