Manufacturer: Calpeda

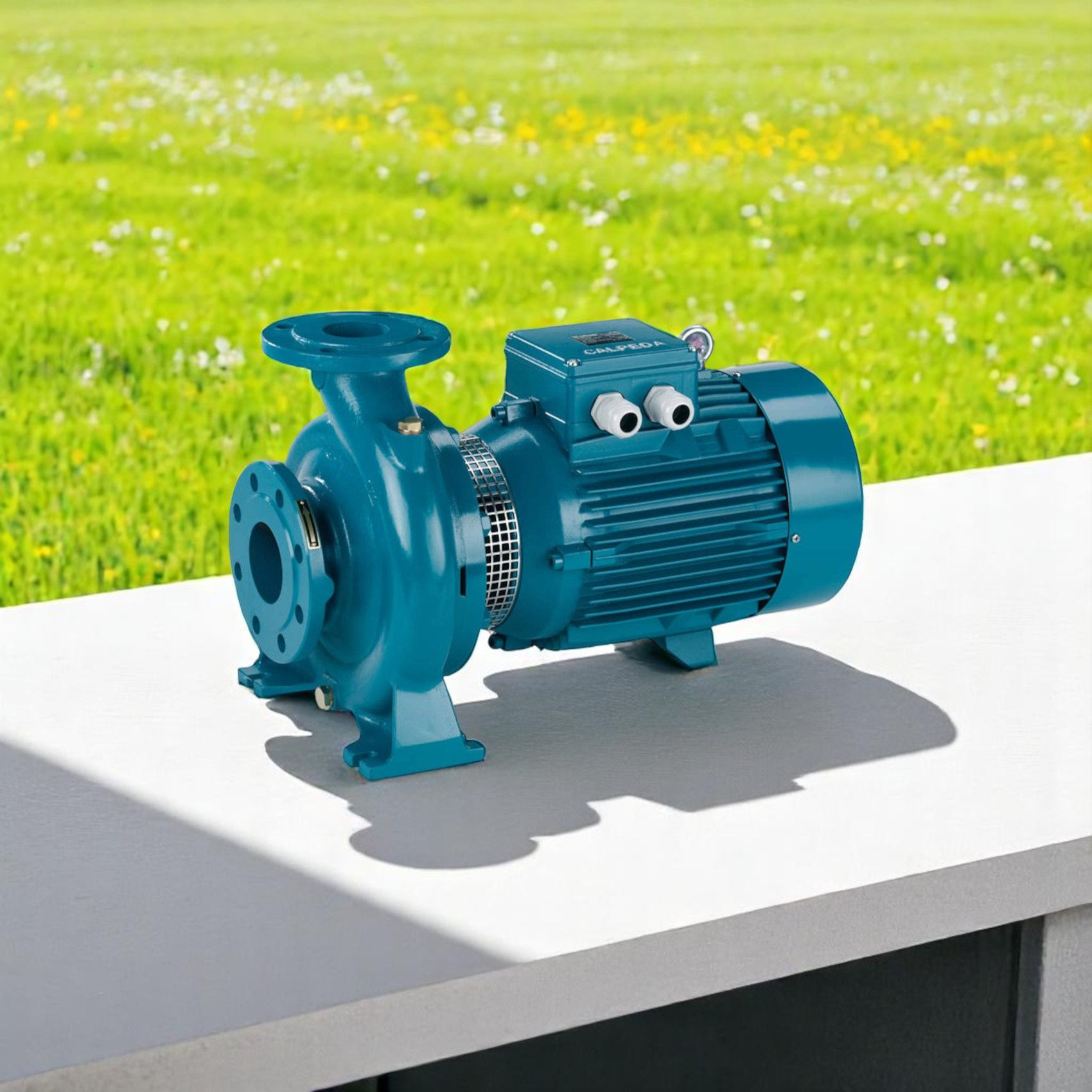

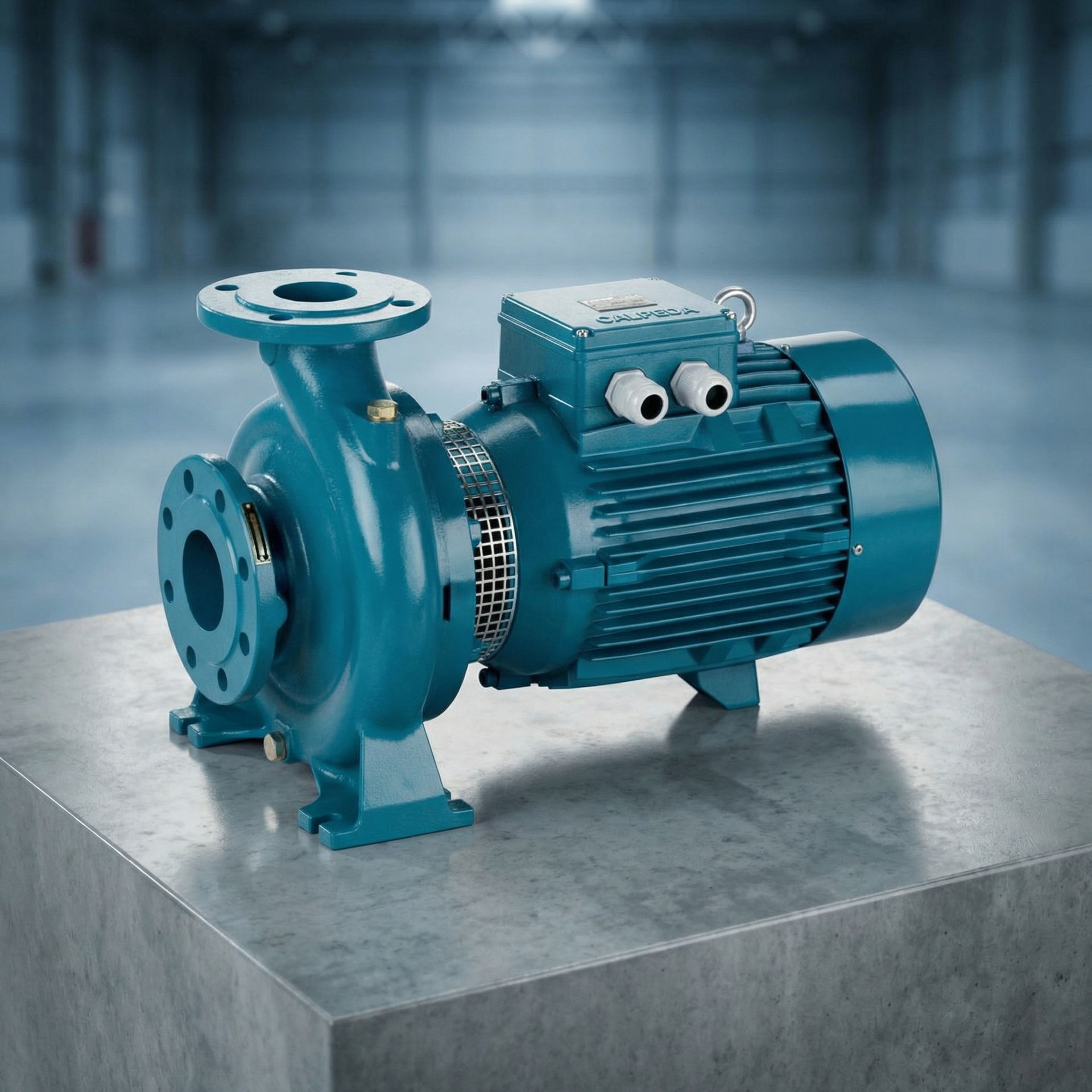

The Calpeda NM 65/20B/B is a Close-Coupled Single Impeller Three-Phase Centrifugal Pump with Flanged Connections

It Features a Casing, Lantern Bracket and an Impeller That is Made from Heavy Duty Cast Iron, and Stainless-Steel Shaft

It is Mainly Used for Water Supply, Heating, Air-Conditioning, Cooling and Circulating Plants, Fire Fighting and Irrigarion and Can Operate Within Temperatures Ranging from -10 °C to +90 °C

The NM 65/20B/B has a Power Output of 25 Horsepower a Maximum Head of 50 Meters and a Maximum Capacity of 2,200 Liters per Minute

Free shipping

Availability: Out of stock

Specifications
Overview
Warranty

Products specifications

Attribute name	Attribute value
Type	Centrifugal Pump (Flanged Connections)
Motor Output	25 Horsepower
Phase	Three Phase
Material	Cast Iron Casing, Cast Iron Impeller, Stainless-Steel Shaft
Inlet/Outlet	3x2.5"
Operating Fluid Temperature	from -10 °C to +90 °C
Maximum Head	50 m
Maximum Capacity	2,200 l/min
Made In	Italy

The Calpeda NM 65/20B/B is a Close-Coupled Single Impeller Three-Phase Centrifugal Pump with Flanged Connections

It Features a Casing, Lantern Bracket and an Impeller That is Made from Heavy Duty Cast Iron, and Stainless-Steel Shaft

It is Mainly Used for Water Supply, Heating, Air-Conditioning, Cooling and Circulating Plants, Fire Fighting and Irrigarion and Can Operate Within Temperatures Ranging from -10 °C to +90 °C

The NM 65/20B/B has a Power Output of 25 Horsepower a Maximum Head of 50 Meters and a Maximum Capacity of 2,200 Liters per Minute

1 Year from any manufacturing defects, on all parts.

The warranty will be considered void due to the following reasons:

• In case of mis-use or not abiding by manufacturer's guidelines/instructions on how to install, operate or maintain.

• The use of non-genuine parts.

The Calpeda NM 65/20B/B is a Close-Coupled Single Impeller Three-Phase Centrifugal Pump with Flanged Connections

It Features a Casing, Lantern Bracket and an Impeller That is Made from Heavy Duty Cast Iron, and Stainless-Steel Shaft

It is Mainly Used for Water Supply, Heating, Air-Conditioning, Cooling and Circulating Plants, Fire Fighting and Irrigarion and Can Operate Within Temperatures Ranging from -10 °C to +90 °C

The NM 65/20B/B has a Power Output of 25 Horsepower a Maximum Head of 50 Meters and a Maximum Capacity of 2,200 Liters per Minute

Products specifications

Attribute name	Attribute value
Type	Centrifugal Pump (Flanged Connections)
Motor Output	25 Horsepower
Phase	Three Phase
Material	Cast Iron Casing, Cast Iron Impeller, Stainless-Steel Shaft
Inlet/Outlet	3x2.5"
Operating Fluid Temperature	from -10 °C to +90 °C
Maximum Head	50 m
Maximum Capacity	2,200 l/min
Made In	Italy
